Here’s how you can open the Solibri Inside Plugin in the different authoring tools:

• Graphisoft Archicad
• Allplan Bimplus
• Allplan desktop
• Vectorworks

Graphisoft Archicad

For Graphisoft Archicad, the minimum required version is Archicad 26 (build 4019). To open the Solibri Inside Plugin in Graphisoft Archicad:

1. Open Archicad.
2. Click Design > Model Check > Design Checker:
3. The Solibri Inside Plugin opens.

Allplan Bimplus

For Allplan desktop, the minimum required version is Allplan 2021. To perform checks, you need access to a Bimplus Professional Team (included in Allplan SSA). To open the Solibri Inside Plugin in Allplan Bimplus:

1. Upload your Allplan model to a Bimplus project hosted within a Bimplus Professional
   Team. Open the project.
2. Click the Solibri Inside icon on the left:


3.

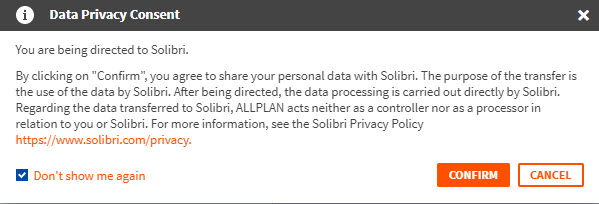

4. To open the Plugin, you need to agree to Solibri’s Privacy Policy. If you don’t wish to see the message again, remember to mark the checkbox for Don’t show me again. To proceed, click Confirm:

5. The Solibri Inside Plugin opens:


Allplan desktop

To perform checks, you need access to a Bimplus Professional Team (included in Allplan SSA). To open the Solibri Inside Plugin in Allplan desktop:

1. Upload your Allplan model to a Bimplus project hosted within a Bimplus Professional Team. Open the project in Allplan.
2. Go to the Teamwork tab.
3. Open BIM Explorer:

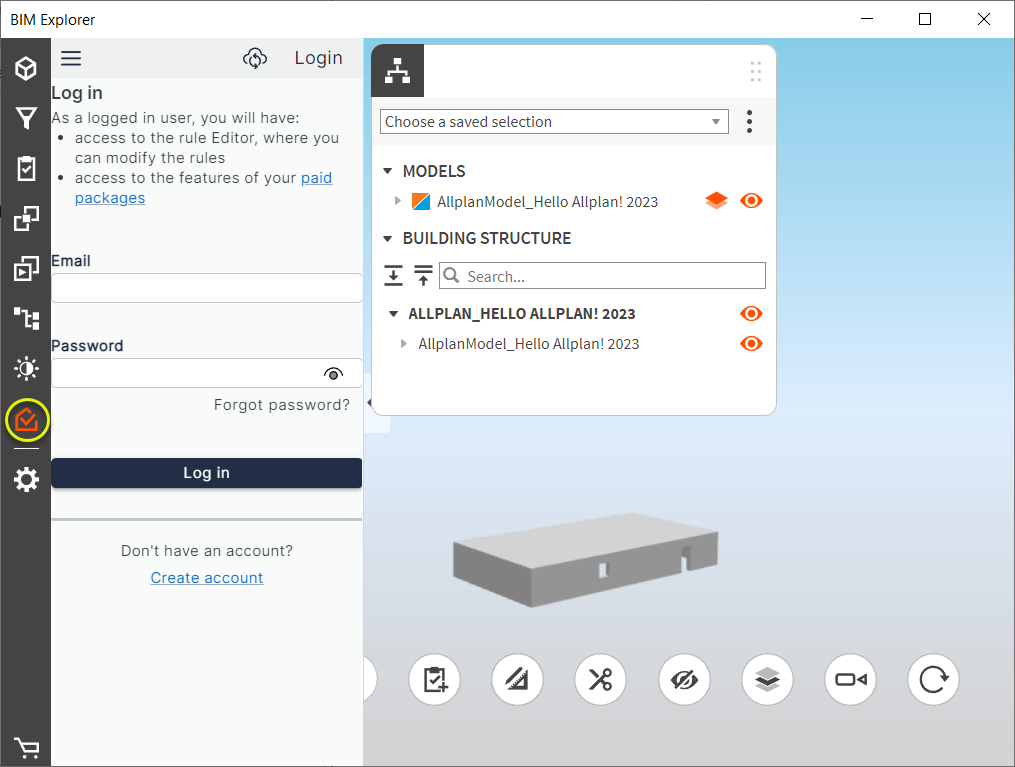

4. A new window opens. Click the Solibri inside icon on the left.
5. To open the Plugin, you need to agree to Solibri’s Privacy Policy. If you don’t wish to see the message again, remember to mark the checkbox for Don’t show me again. To proceed, click Confirm:

6. The Solibri Inside Plugin opens.

Vectorworks

For Vectorworks, the minimum required version is Vectorworks 2023 SP3 build 679347. To open the Solibri Inside Plugin in Vectorworks:

1. Open Vectorworks.
2. In the menu, click Help > Install partner products…
3. A new window opens. Go to the Architectural category, find Solibri Inside and click it.
4. Click Install.
5. When prompted, restart Vectorworks to complete the installation.

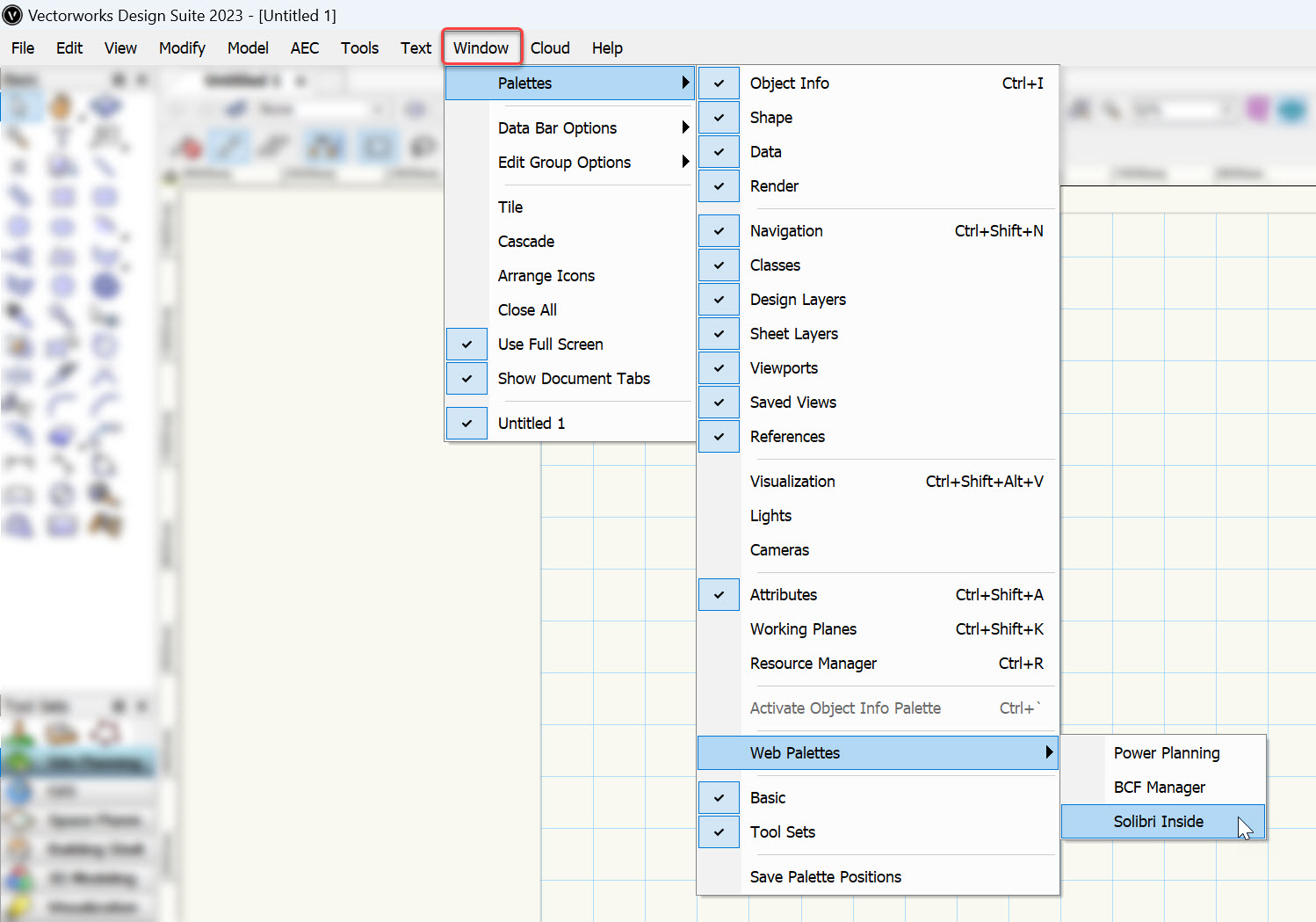

6. After Vectorworks starts, you should see the Solibri Inside Plugin. If it’s not visible, you can find it in Window > Palettes > Web Palettes:
